美國CIRS 009放療體模用于軀干, 脖子, 頭的放療測試。
美國CIRS 009放療體模產品簡介：

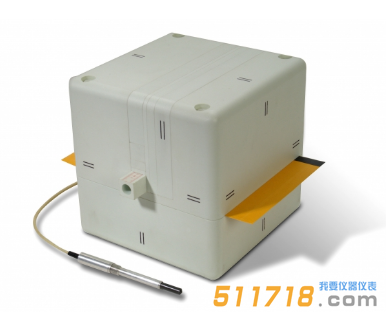

The CIRS Model 009 Cube 20 Phantom was designed for routine QA in RT and IMRT
applications where ease of use and quick set-up are important. The Cube 20
phantom is manufactured from Plastic Water? DT which faithfully mimics the
linear attenuations of water within 1% from 50 keV to 15 MeV. This enables
complete QA from CT image acquisitions to therapy dose verifications. The 20 cm
cubic dimension was chosen as a suitable approximation for both head/neck and
torso treatments. All the edges are rounded to avoid CT artifacts.
Chamber, diode or MOSFET detectors are easily positioned at isocenter of the
cube and laser alignment marks on all sides facilitate precise positioning of
the phantom.* Detector position can be adjusted in 1 mm increments
longitudinally and 5 mm increments for lateral and elevational adjustments.
Ready-Pac film can be inserted in the Cube. By rotating the cube, the film is
easily set in sagital, coronal or transverse orientations.
Stainless steel fiducials are clearly resolvable on CT images and leave small
indentations on the film for precise film to plan registration. Upon request, a
recess can be milled in the interface surface for darkroom loading of
radiographic film 5 x 6"
美國CIRS 009放療體模產品特點：
Routine patient QA
Beam constancy checks
MLC QA
User friendly set-up and positioning
Suitable for head/neck and torso treatments
Mimics water within 1%
*Customers are encouraged to complete their order with the purchase of
the insert option listed below:
009RW-CVXX-XX - Water equivalent cavity block (Plastic Water? DT)
*NOTE: This product or an optional accessory of this product requires a CIRS
dosimetry cavity code before an order can be placed. Please refer to the
Dosimetry Cavity Codes document to identify the CIRS code for the probe you
intend to use with this product.
